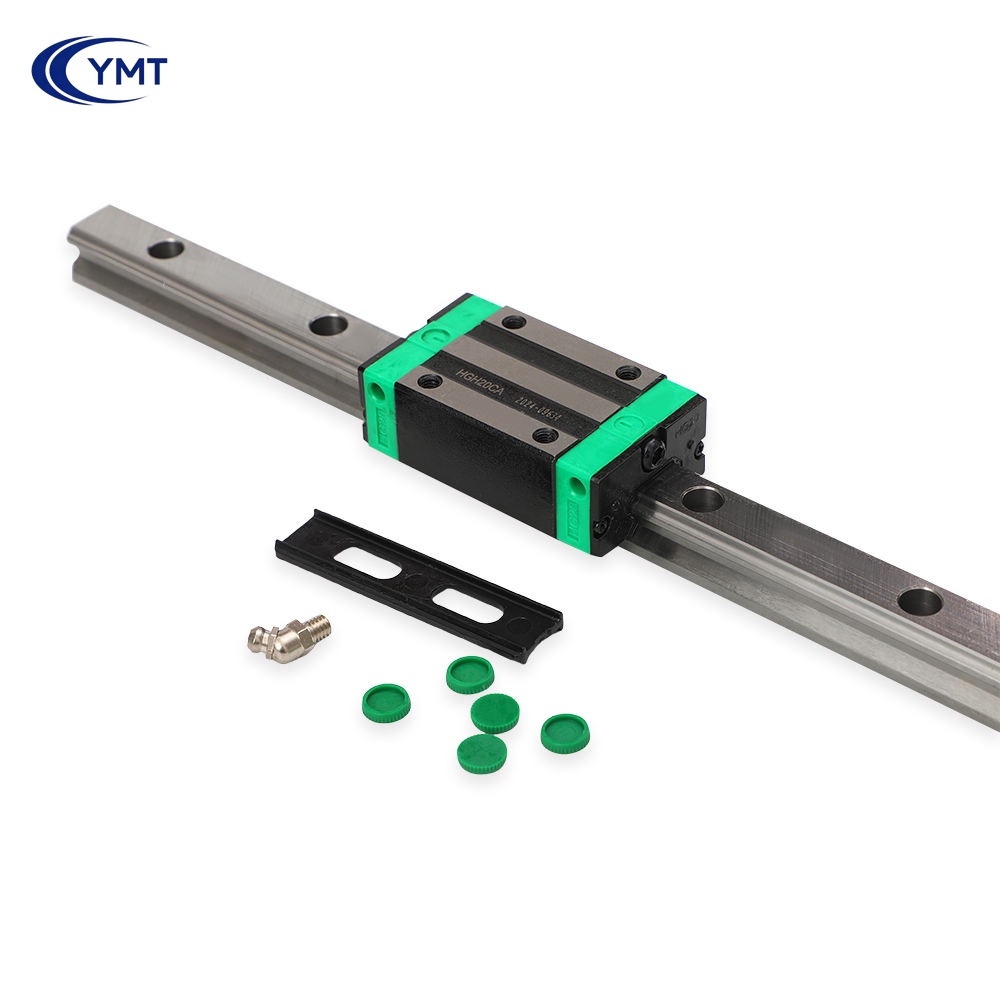

Linear guide bearings are high-precision linear motion guiding devices composed of a guide rail, a slider, and internally circulating balls (or rollers).  They achieve low-friction, high-precision, and high-load linear reciprocating motion through the rolling of the balls between the guide rail and the slider. They are widely used in precision machinery fields such as CNC machine tools, automation, and medical equipment.

Core Structure and Principle

Components: Mainly composed of a guide rail (fixed track), an LM slider (moving part), and balls.

Motion Method: The balls circulate and roll in the grooves between the slider and the guide rail, converting sliding friction into rolling friction, significantly reducing motion resistance.

High Precision: Precise machining and pre-loading design enable micron-level positioning accuracy and repeatability.

High Load Capacity: The special four-row arc groove design allows the balls to withstand multi-directional loads from above, below, left, and right.

Self-Aligning: Some designs have self-aligning capabilities, absorbing minor deviations in the mounting surface and maintaining smooth movement.

Main Functions

Load Bearing and Support: Supports and bears the weight of workpieces or equipment, distributing the load evenly across the entire guide rail system.

Guiding and Positioning: Provides precise linear guidance, ensuring that equipment components move along a predetermined trajectory.

Reduced Friction and Wear: Rolling friction is far less than sliding friction, effectively reducing energy consumption and wear.

Vibration Absorption: Has a certain ability to absorb vibration and shock.

Main Applications

CNC Machine Tools: Milling machines, lathe spindles, tool magazines.

Automation/Robotics: Conveyor lines, robotic arms.

Semiconductor Manufacturing: Chip processing, testing equipment.

Medical Equipment: CT scanners, surgical robots.

Printing and Packaging: Print heads, labeling machines.

Advantages over Traditional Sliding Guides

Low Friction: Extremely low friction coefficient, smooth motion, easy starting, and high accuracy.

High Rigidity/High Precision: Pre-loadable, strong load capacity, and no backlash.

Maintenance-Free/Long Life: The ball design reduces wear, making it more reliable than traditional dovetail guides.

Interchangeability: Good interchangeability, easy to replace and maintain.
